pMon PMC-5151 IIoT Power Monitoring Gateway

You are here:

Site Information

Product Details

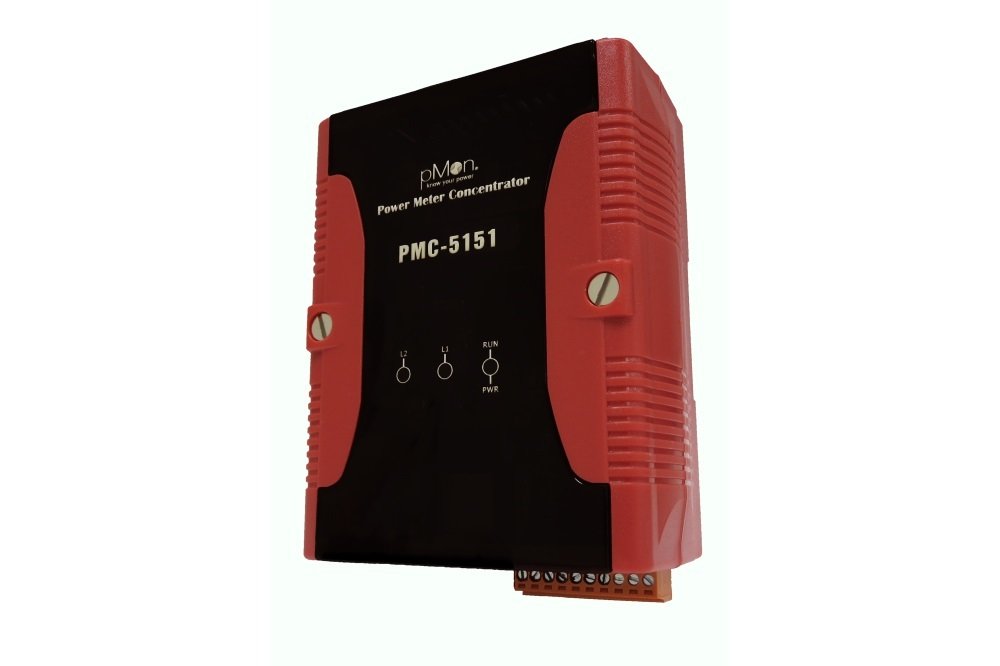

The pMon® PMC-5151 Power Meter Concentrator is a web-based intelligent device gateway designed for comprehensive power analysis, energy management and industrial instrumentation applications. It can connect up to 24 pMon® PM-3000 series power meters plus 8 other Modbus devices to form a comprehensive power, energy and instrument monitoring network.

Utilising Web 2.0 UI design, PMC-5151 provides an intuitive and responsive user interface for rapid system configuration and on-the-fly analysis of meter and sensor data on both desktop and mobile web browsers. Inside the PMC-5151 is a high performance 32-bit processor with 4GB on-board storage that is capable of running multiple concurrent data and information services, including FTP, Flash HMI, Modbus Slave Mode and SNMP v2c support.

With multiple physical COM ports and dual Ethernet interfaces, PMC-5151 offers greater flexibility and performance when connecting to multiple Serial and Ethernet networks.

Features & Benefits

Data Logging and Protocol Conversion gateway.
Expandable I/O supports up to 24 pMon® Power Meters and 8 Modbus I/O modules.
Demand/Condition Analysis and Reporting with automatic report delivery via FTP.
Industrial Data Protocol Support including SNMP v2c, Modbus RTU/TCP for enterprise integration.
Robust Real-Time System designed for mission critical application including logic control and exception notification.

Specifications

System Software
OS	Windows CE OS
Embedded Service	PMC Runtime, Web server, FTP server
CPU Module
CPU	32-bit ARM CPU
SDRAM	128 MB
Flash	64 MB
microSD socket, 4 GB microSD card pre-installed (support up to 16 GB)
LED Indicator	1 LED for Power and Running
Rotary Switch	Yes (0 ~ 9)
VGA & Communication Ports
VGA	Yes, Resolution: 640 × 480, 800 × 600
Ethernet	RJ-45 x 2, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 1.1 (client)	1
USB 1.1 (host)	1, can connect to SMS Modem (GTM-201-USB)
USB 2.0 (host)	1
COM 1	RS-485 (D+, D-); 2500 VDC; isolated
COM 2	RS-232 (TxD, RxD, GND), non-isolated, 115200bps max.
COM 3	RS-485 (D+, D-); 2500 VDC; isolated
Mechanical
Dimensions (W x L x H)	91 mm x 126 mm x 52 mm
Installation	DIN-Rail Mounting
Environmental
Operating Temperature	-25 ~ +75°C
Storage Temperature	-30 ~ +80°C
Ambient Relative Humidity	10 ~ 90% RH (non-condensing)
Power
Input Range	+10 ~ +40 VDC
Isolation	1 kV
Consumption	4.8 W (0.2 A @ 24 VDC)
